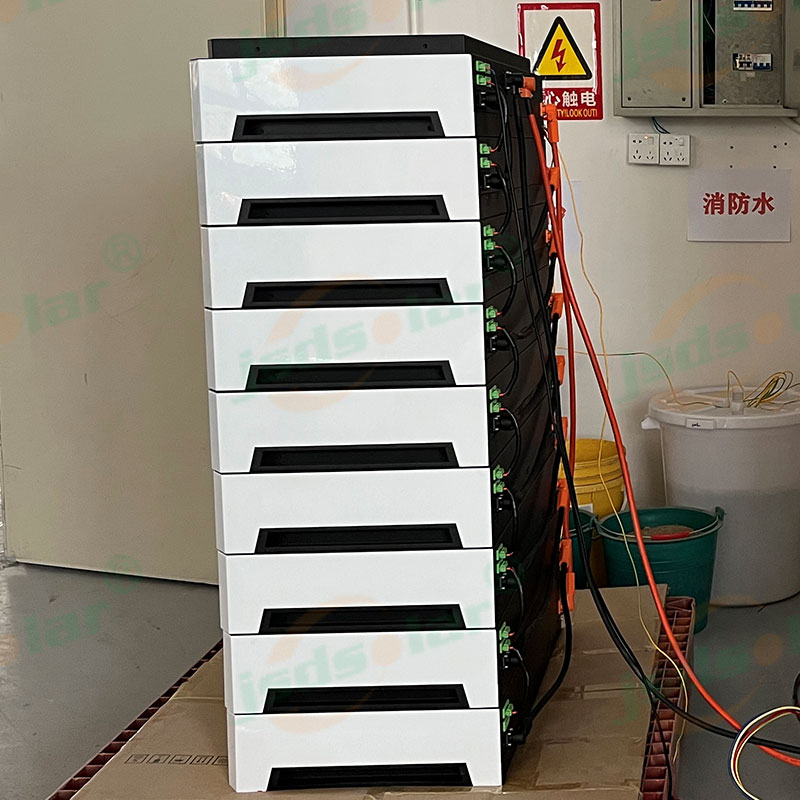

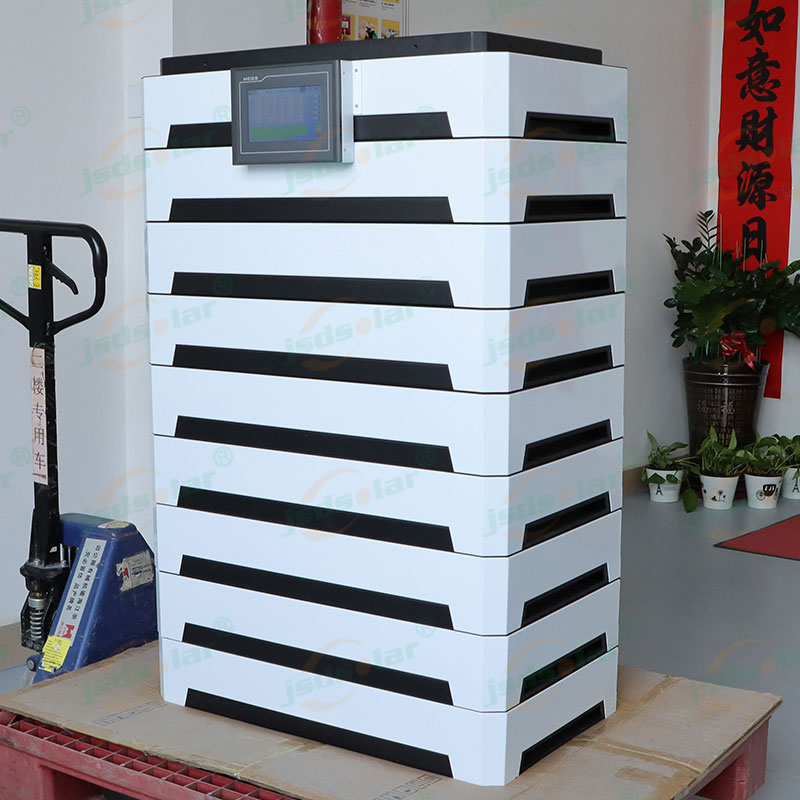

Superposed Lithium Battery for 5KW to 30KW System

Stackable Lithium Iron Phosphate battery is with modular design to save the installation space, and convenient operation to save the installation time, LFP battery we manufactured lifespan is more than 13years, and 3000cycles @100% DOD / 25℃ / 0.5C charge / 80% EOL

REQUEST A QUOTE
  • Superpose design to save a lot installation space
  • Suitable for 20 to 30KW solar power home system
  • Compatible all type solar inverter
  • Adopted thick nickel sheet to make impedance less
  • Adopted ultrasonic laser technology to achieve seamless welding
  • Equipped two single-chip microcomputers, dual-core BMS, stronger management and protection system.
Mode ESS-48100 ESS-48100 ESS-48100 ESS-48100 ESS-48100 ESS-48100
Total Energy 5KWH 10KWH 15KWH 20KWH 25KWH 30KWH
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Normal voltage 51.2V 51.2V 51.2V 51.2V 51.2V 51.2V
Normal Caacity 100AH 200AH 300AH 400AH 500AH 600AH
Max Charge/Discharge Current 100A 100A 100A 100A 100A 100A
Cycle LiFe 6000cycles 6000cycles 6000cycles 6000cycles 6000cycles 6000cycles
Com Interface CAN/RS232/RS485 CAN/RS232/RS485 CAN/RS232/RS485 CAN/RS232/RS485 CAN/RS232/RS485 CAN/RS232/RS485
Dimension 710*450*192mm 2*710*450*192mm 3*710*450*192mm 4*710*450*192mm 5*710*450*192mm 6*710*450*192mm
Weight 48KG 2*48KG 3*48KG 4*48KG 5*48KG 6*48KG
IP Grade IP65 IP65 IP65 IP65 IP65 IP65
Operating Temperature -15℃~60℃ -15℃~60℃ -15℃~60℃ -15℃~60℃ -15℃~60℃ -15℃~60℃
Inverter/charge controller All type All type All type All type All type All type
Installation Superposed Superposed Superposed Superposed Superposed Superposed
