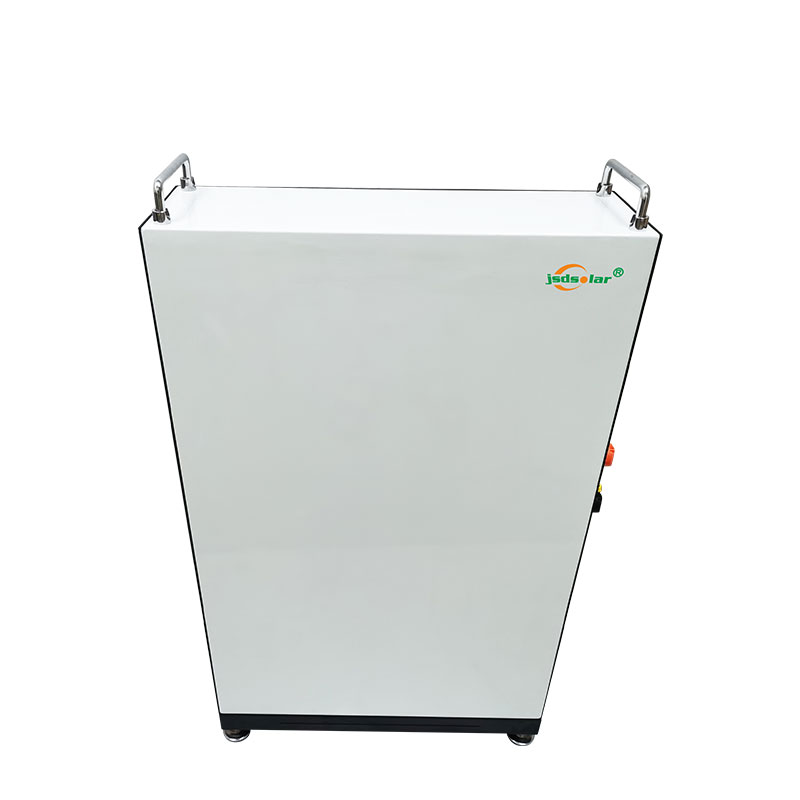

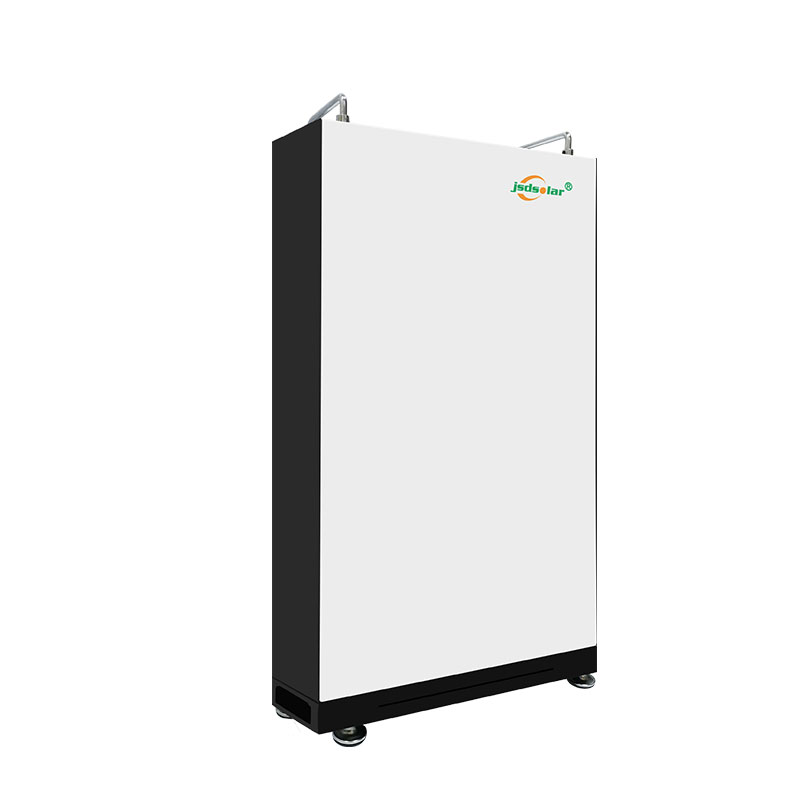

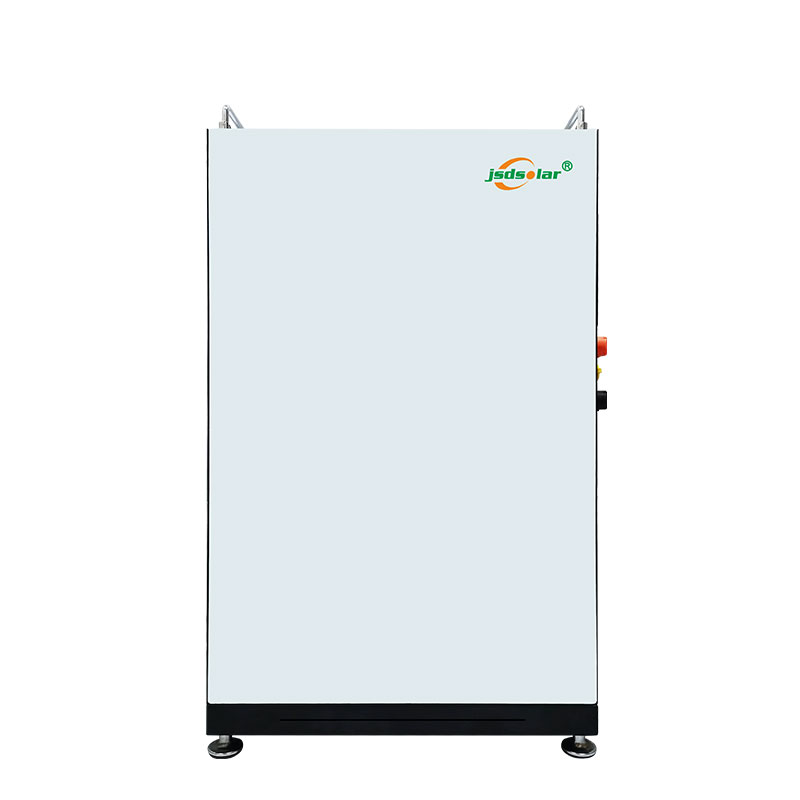

Power Wall Standing 51.2V 200Ah 10KWH Lithium Iron Phosphate Battery

Power Wall standing 10KWH LiFePO4 battery is designed to for long service life time. It installs conveniently, saving space, and good performance in harsh grid shortage environment.

REQUEST A QUOTE
  • Standing design for 10KW to 30KW solar power system
  • Supported power on/ off switch operation.
  • Parallel connection to expand battery capacity from 10KWH to 60KWH
  • Compatible all types solar inverter
  • 6000cycles, high energy density LiFePO4 battery cell.
  • Adopted thick nickel sheet to make impedance less
  • Adopted ultrasonic laser technology to achieve seamless welding
  • Equipped two single-chip microcomputers, dual-core BMS, stronger management and protection system
Model JSD-S10KWH
Normal Capacity 200Ah
Total Energy 10KWH
Battery Type Lifepo4
Normal Voltage 51.2V
Max.Charge / Discharge Current 100A
Installation Standing on the ground
Waterproof IP21 & IP65
Communication Port RS232/RS485/CAN
Support Parallels Max. 10pcs in parallels
Dimension 820*485*170mm
Weight 90KG
