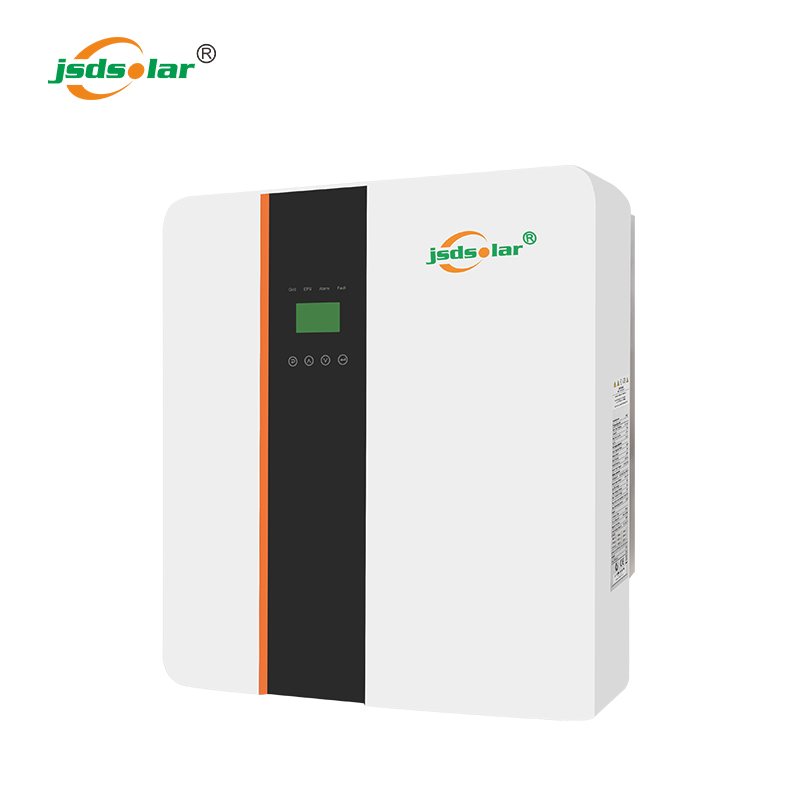

EU Standard Hybrid 6KW to 30KW 48V solar inverter single phase

Hybrid solar system is solar panels remain connected to the grid and have a backup battery system to store excess power. The sun energy absorbed by the solar panels goes through an inverter to create usable electricity. From there, electricity either goes to your home, to your battery, or to the grid net

REQUEST A QUOTE
  • Wide input voltage range
  • Compatible with lead-acid or lithium-ion batteries or other battery
  • Fashion apperance, light weight, smart operation
  • Natural cooling, low noise
  • Wall mounted design, saving space
  • Touch screen LCD
  • Intelligent energy management system for home
  • Distributed virtual power station management.
Model JSDR6KL1
PV Input
Max. Input Power 7000W
Start-up voltage 125V
Max. PV voltage 550V
MPPT range/nominal 125V-550V /360V
Max. input current 14A/14A
MPPT tracker/strings 2/1
AC Output
Rated power VA/W 6000VA/6000W
Max. output current 26A
Nominal voltage/range 230V /180Vac~280Vac
Frequency 50 /60Hz
PF 0.99lagging-0.99leading)
THDI <3%
AC output topology L+N+PE
Battery
Battery voltage range 40~58V
Max.charging voltage 58V
Charge/discharge current 95 A / 110 A
Battery type lithium /Lead-acid
Communication interface CAN/RS485
EPS Output
Rated power VA/W 6000VA/6000W
Rated voltage 230Vac
Rated current 26A
Rated frequency 50 /60Hz
Automatic switchover time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30s/150%,10s
General Data
Battery chage/dischage 95.5%/95%
DC max. efficiency 97.60%
Euro efficiency 97%
MPPT efficiency 99.90%
Protection class IP65
Noise emission (typical) <35dB
Operation temperature -25ºC~+60ºC
Cooling Natural
Relative humidity 0 ~95% （non-condensing）
Altitude 2000m
Dimensions (WXDXH) 550X200X515mm
Weight 25kg
Inverter topology Without transformer
Self-consumption <3W
Features
Display LCD
Interface:rs485/wifi/can/drm yes /opt/opt/yes/yes
Certificates CE,TUV
